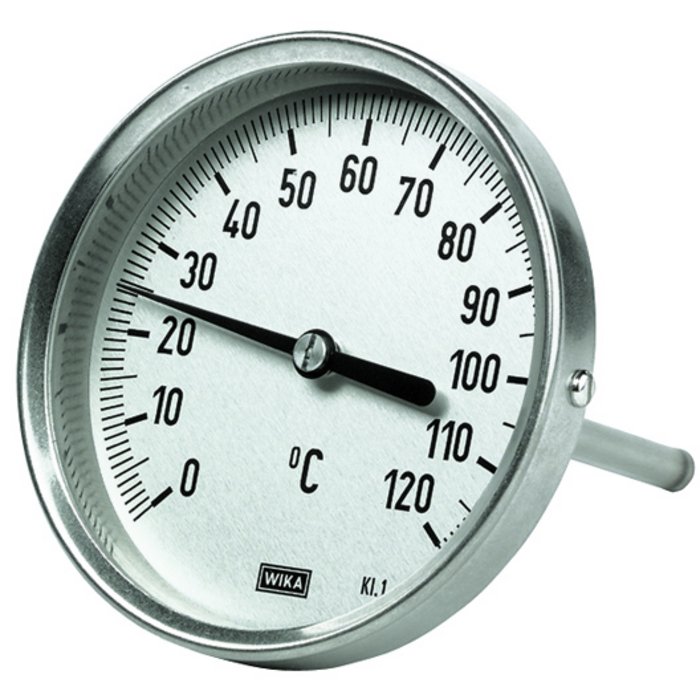

Bimetallic thermometers - K-BIMETALLTHERMOMETER 52-2

Bimetallic thermometers - K-BIMETALLTHERMOMETER 52-2

нет в наличии

код: 678835848

1,00 грн. /шт

з 3 отзывов, 100% положительных

Все товары продавца

Регион: Украина, Киевская обл., Киев

+380 показать

Написать продавцу

Описание товара

Свойства

Тип

Корпус, кольцо

CrNi steel

Коррекция показаний

Trimming pointer

Погружной щуп

Ø 8 mm, CrNi steel

Рабочее давление

Max. 25 bar (on thermowell)

Смотровое стекло

Flat instrument glass

Описание

Applications: Extremely versatile design for use in machine, vessel, pipeline and plant construction as well as for heating systems.

Изделие

Наименование	Ø mm	Диапазоны измерений	Длина погружного щупа	Соединение
K- 07 20 07 26	63.0	-30 °C to +50 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 27	63.0	0 °C to +120 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 28	63.0	0 °C to +160 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 29	63.0	0 °C to +200 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 30	63.0	0 °C to +250 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 31	63.0	-30 °C to +50 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 32	63.0	0 °C to +120 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 33	63.0	0 °C to +160 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 34	63.0	0 °C to +200 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 35	63.0	0 °C to +250 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 36	63.0	-30 °C to +50 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 37	63.0	0 °C to +120 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 07 38	63.0	0 °C to +160 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 11	100.0	-30 °C to +50 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 12	100.0	0 °C to +120 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 13	100.0	0 °C to +160 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 14	100.0	0 °C to +250 °C	thermowell L1 = 63mm, L2 = 43mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 15	100.0	-30 °C to +50 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 16	100.0	0 °C to +120 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 17	100.0	0 °C to +160 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 18	100.0	0 °C to +200 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 19	100.0	0 °C to +250 °C	thermowell L1 = 100mm, L2 = 80mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 20	100.0	-30 °C to +50 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 21	100.0	0 °C to +120 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 22	100.0	0 °C to +160 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 23	100.0	0 °C to +200 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
K- 07 20 02 24	100.0	0 °C to +250 °C	thermowell L1 = 160mm, L2 = 140mm	Flush, with collar for thermowell, Ø 18 mm
