Свойства
Support surfaces on the bottom
higher suction power at narrow workpieces
Область применения
Handling of narrow parts and bars
Handling of parts which only have narrow and small places to grab
them.

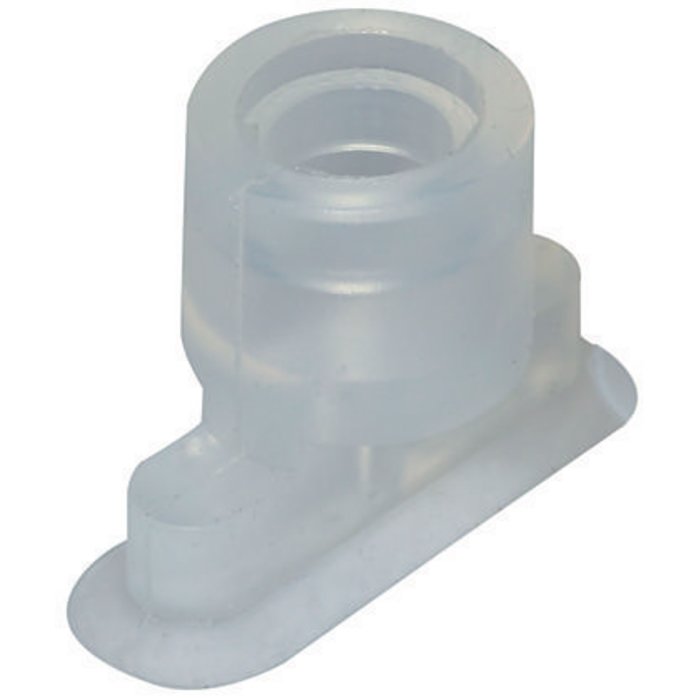

Robust and hard-wearing suction pad with a single, oval-shaped sealing lip. Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle long or flat workpieces. Due to its oval shape, it has a considerably higher suction force than round, flat suction pads when handling narrow or long workpieces. It acts as the connecting element between the vacuum generator and the workpiece.
| Наименование | Ø1 x Ø2 овал | Габаритная высота с ниппелем (внутренняя резьба) | Габаритная высота с ниппелем (наружная резьба) | Соединительный ниппель с внешней резьбой | Соединительный ниппель с внутренней резьбой |
|---|---|---|---|---|---|
| K- 07 45 00 78 | 7.0 mm x 3.5 mm | - | 8 | K-07450014 | - |
| K- 07 45 00 80 | 15.0 mm x 5.0 mm | 22 | 17 | K-07450010 | K-07450012 |
| K- 07 45 00 82 | 18.0 mm x 6.0 mm | 22 | 17 | K-07450010 | K-07450012 |
| K- 07 45 00 84 | 30.0 mm x 10.0 mm | 25 | 17 | K-07450008 | K-07450009 |
| K- 07 45 00 86 | 45.0 mm x 15.0 mm | 36 | 26 | K-07450011 | K-07450013 |
