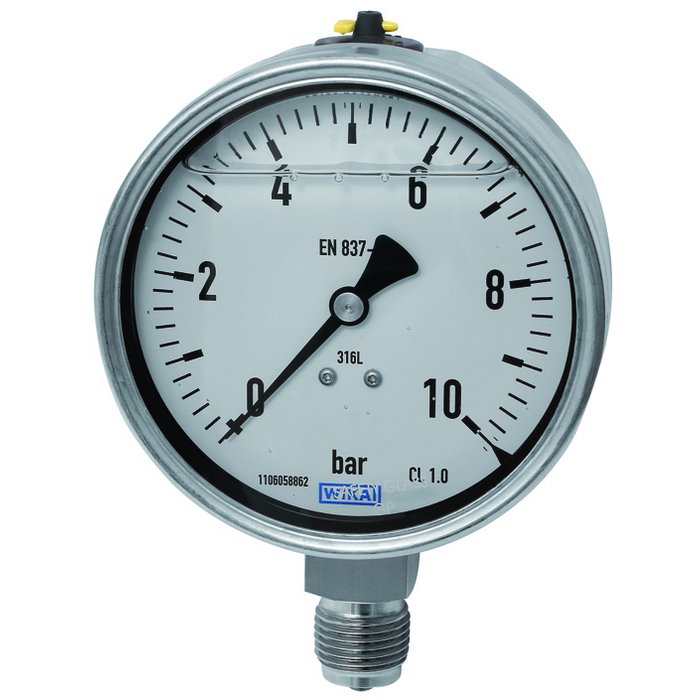

Glycerine-filled pressure gauges Glycerine-filled pressure gauges, CrNi steel type - K-GMM 1

Glycerine-filled pressure gauges Glycerine-filled pressure gauges, CrNi steel type - K-GMM 1

нет в наличии

код: 678834651

1,00 грн. /шт

з 3 отзывов, 100% положительных

Все товары продавца

Регион: Украина, Киевская обл., Киев

+380 показать

Написать продавцу

Описание товара

Свойства

Тип

233.50

Применение

For gaseous or liquid, corrosive and crystallising mediawhich do not have high viscosity, also in corrosive atmosphere

Исполнение

Glycerine-filled bourdon-tube pressure gauge, CrNi steel type

Класс качества

1.6 (Ø 63 mm), 1.0 (Ø 100 mm and Ø 160 mm)

Температура окружающей среды

от -20 °C до +60 °C

Температура среды

max. +100 °C

Корпус

CrNi steel

Смотровое стекло

Laminated safety glass Ø 63 = Polycarbonate

Описание

For use in the chemical/petrochemical process industry, power stations, machinery and industrial plant engineering. For measuring points with high dynamic pressure loads and vibrations.

Изделие

Наименование	Ø mm	Диапазон измерений	Соединение
K- 07 20 11 93	63.0	-1 / 0.0 bar	G 1/4"
K- 07 20 11 95	63.0	-1 / +0.6 bar	G 1/4"
K- 07 20 11 97	63.0	-1 / +1.5 bar	G 1/4"
K- 07 20 11 99	63.0	-1 / +3.0 bar	G 1/4"
K- 07 20 12 01	63.0	-1 / +5.0 bar	G 1/4"
K- 07 20 12 03	63.0	-1 / +9.0 bar	G 1/4"
K- 07 20 12 05	63.0	-1 / +15.0 bar	G 1/4"
K- 07 20 12 08	63.0	0 - 1.0 bar	G 1/4"
K- 07 20 12 10	63.0	0 - 1.6 bar	G 1/4"
K- 07 20 12 12	63.0	0 - 2.5 bar	G 1/4"
K- 07 20 12 14	63.0	0 - 4.0 bar	G 1/4"
K- 07 20 12 16	63.0	0 - 6.0 bar	G 1/4"
K- 07 20 12 18	63.0	0 - 10.0 bar	G 1/4"
K- 07 20 12 20	63.0	0 - 16.0 bar	G 1/4"
K- 07 20 12 22	63.0	0 - 25.0 bar	G 1/4"
K- 07 20 12 24	63.0	0 - 40.0 bar	G 1/4"
K- 07 20 12 26	63.0	0 - 60.0 bar	G 1/4"
K- 07 20 12 28	63.0	0 - 100.0 bar	G 1/4"
K- 07 20 12 30	63.0	0 - 160.0 bar	G 1/4"
K- 07 20 12 32	63.0	0 - 250.0 bar	G 1/4"
K- 07 20 12 34	63.0	0 - 400.0 bar	G 1/4"
K- 07 20 12 36	63.0	0 - 600.0 bar	G 1/4"
K- 07 20 11 92	100.0	-1 / 0.0 bar	G 1/2"
K- 07 20 11 94	100.0	-1 / +0.6 bar	G 1/2"
K- 07 20 11 96	100.0	-1 / +1.5 bar	G 1/2"
K- 07 20 11 98	100.0	-1 / +3.0 bar	G 1/2"
K- 07 20 12 00	100.0	-1 / +5.0 bar	G 1/2"
K- 07 20 12 02	100.0	-1 / +9.0 bar	G 1/2"
K- 07 20 12 04	100.0	-1 / +15.0 bar	G 1/2"
K- 07 20 12 06	100.0	0 - 0.6 bar	G 1/2"
K- 07 20 12 07	100.0	0 - 1.0 bar	G 1/2"
K- 07 20 12 09	100.0	0 - 1.6 bar	G 1/2"
K- 07 20 12 11	100.0	0 - 2.5 bar	G 1/2"
K- 07 20 12 13	100.0	0 - 4.0 bar	G 1/2"
K- 07 20 12 15	100.0	0 - 6.0 bar	G 1/2"
K- 07 20 12 17	100.0	0 - 10.0 bar	G 1/2"
K- 07 20 12 19	100.0	0 - 16.0 bar	G 1/2"
K- 07 20 12 21	100.0	0 - 25.0 bar	G 1/2"
K- 07 20 12 23	100.0	0 - 40.0 bar	G 1/2"
K- 07 20 12 25	100.0	0 - 60.0 bar	G 1/2"
K- 07 20 12 27	100.0	0 - 100.0 bar	G 1/2"
K- 07 20 12 29	100.0	0 - 160.0 bar	G 1/2"
K- 07 20 12 31	100.0	0 - 250.0 bar	G 1/2"
K- 07 20 12 33	100.0	0 - 400.0 bar	G 1/2"
K- 07 20 12 35	100.0	0 - 600.0 bar	G 1/2"
K- 07 20 03 48	160.0	0 - 0.6 bar	G 1/2"
K- 07 20 03 49	160.0	0 - 1.0 bar	G 1/2"
K- 07 20 03 50	160.0	0 - 1.6 bar	G 1/2"
K- 07 20 03 51	160.0	0 - 2.5 bar	G 1/2"
K- 07 20 03 52	160.0	0 - 4.0 bar	G 1/2"
K- 07 20 03 53	160.0	0 - 6.0 bar	G 1/2"
K- 07 20 03 54	160.0	0 - 10.0 bar	G 1/2"
K- 07 20 03 55	160.0	0 - 16.0 bar	G 1/2"
K- 07 20 03 56	160.0	0 - 25.0 bar	G 1/2"
K- 07 20 03 57	160.0	0 - 40.0 bar	G 1/2"
K- 07 20 03 58	160.0	0 - 60.0 bar	G 1/2"
K- 07 20 03 59	160.0	0 - 100.0 bar	G 1/2"
K- 07 20 03 60	160.0	0 - 160.0 bar	G 1/2"
K- 07 20 03 61	160.0	0 - 250.0 bar	G 1/2"
K- 07 20 03 62	160.0	0 - 400.0 bar	G 1/2"
K- 07 20 03 63	160.0	0 - 600.0 bar	G 1/2"
