Pneumatic logic elements - K-PNEU LOGIKELEMENTE

Свойства

Рабочее давление

OR-AND: 1.5-8 bar, NOT: 0.4-6 bar, YES - MEMORY: 0.0-8 bar (pilot pressure from 1.5-8 bar)

Область температур

-10 °C to +60 °C

Соединение

Push-in fitting for 4 mm pipe

Возврат в исходное положение

OR - AND: by compressed air, MEMORY: by air, YES - NOT: by mechanical spring

Номинальный Ø

2.7 mm

Расход nom.

100 l/min

Материал

Technopolymer

Заслонка

Aluminium

Уплотнение

Нитрильный каучук

Описание

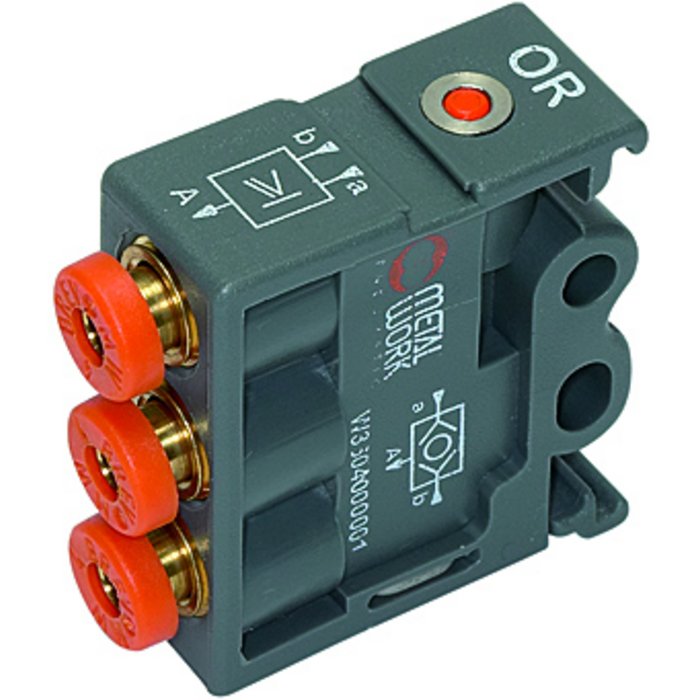

Pneumatic logic elements are available with five different functions: OR, AND, NOT, YES, MEMORY. All elements have an adapter for the Ω-rail (DIN EN 50022) integral with the body.
