Область применения

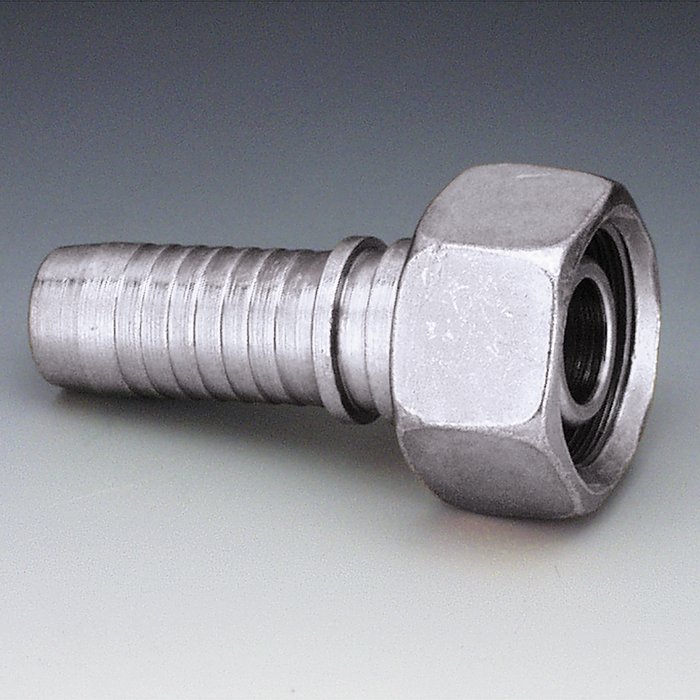

Пресс-ниппель для шлангов от HD 100 до HD 400, KP-, TE
Соединение 1
Метрическая гаечная резьба
Форма уплотнения 1
Наружный конус 24° с кольцом круглого сечения
_____
ISO 8434-1
Сокращение
DKOL
Серия
Легкий
Материал
Сталь
Защита поверхности
Гальваническое покрытие

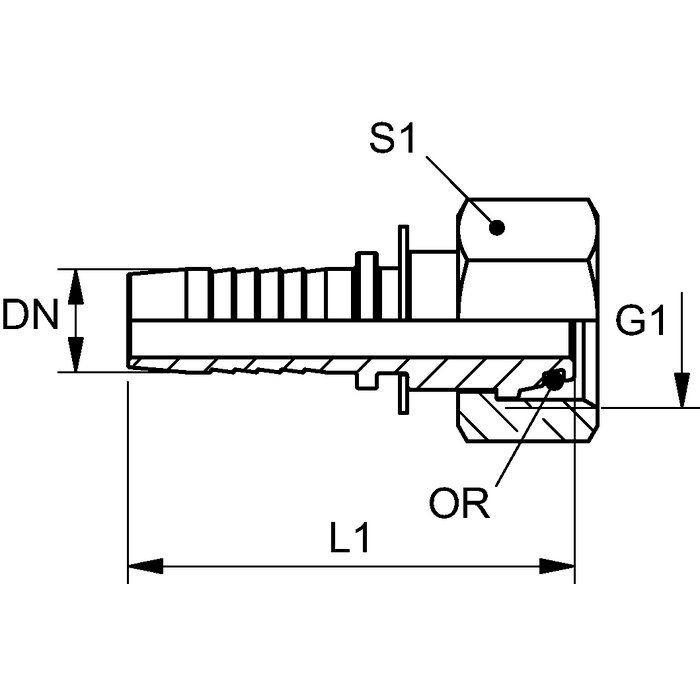

| Наименование | DN | Размер | Дюймы | Рабочее давление bar |
G1 | Для наружного Ø трубы mm |
L1 mm |
S1 | Кольцо круглого сечения |
|---|---|---|---|---|---|---|---|---|---|
| PN 04 AOL | 5 | 3 | 3/16" | 410.0 | M 12 x 1,5 | 6 | 45.5 | 14 | 4.0 x 1.5 |
| PN 04 AOL 06 | 5 | 3 | 3/16" | 410.0 | M 14 x 1.5 | 8 | 45.5 | 17 | 6.0 x 1.5 |
| PN 04 AOL 08 | 5 | 3 | 3/16" | 350.0 | M 16 x 1.5 | 10 | 46.0 | 19 | 7.5 x 1.5 |
| PN 06 AOL 04 | 6 | 4 | 1/4" | 410.0 | M 12 x 1,5 | 6 | 46.5 | 14 | 4.0 x 1.5 |
| PN 06 AOL | 6 | 4 | 1/4" | 410.0 | M 14 x 1.5 | 8 | 52.0 | 17 | 6.0 x 1.5 |
| PN 06 AOL 08 | 6 | 4 | 1/4" | 350.0 | M 16 x 1.5 | 10 | 52.0 | 19 | 7.5 x 1.5 |
| PN 06 AOL 10 | 6 | 4 | 1/4" | 330.0 | M 18 x 1,5 | 12 | 53.0 | 22 | 9.0 x 1.5 |
| PN 08 AOL 06 | 8 | 5 | 5/16" | 350.0 | M 14 x 1.5 | 8 | 47.0 | 17 | 6.0 x 1.5 |
| PN 08 AOL | 8 | 5 | 5/16" | 350.0 | M 16 x 1.5 | 10 | 52.0 | 19 | 7.5 x 1.5 |
| PN 08 AOL 10 | 8 | 5 | 5/16" | 330.0 | M 18 x 1,5 | 12 | 53.0 | 22 | 9.0 x 1.5 |
| PN 10 AOL 06 | 10 | 6 | 3/8" | 330.0 | M 14 x 1.5 | 8 | 50.5 | 17 | 6.0 x 1.5 |
| PN 10 AOL 08 | 10 | 6 | 3/8" | 330.0 | M 16 x 1.5 | 10 | 51.5 | 19 | 7.5 x 1.5 |
| PN 10 AOL | 10 | 6 | 3/8" | 330.0 | M 18 x 1,5 | 12 | 54.5 | 22 | 9.0 x 1.5 |
| PN 10 AOL 13 | 10 | 6 | 3/8" | 275.0 | M 22 x 1.5 | 15 | 56.5 | 27 | 12.0 x 2.0 |
| PN 13 AOL 10 | 12 | 8 | 1/2" | 275.0 | M 18 x 1,5 | 12 | 54.5 | 22 | 9.0 x 1.5 |
| PN 13 AOL | 12 | 8 | 1/2" | 275.0 | M 22 x 1.5 | 15 | 57.5 | 27 | 12.0 x 2.0 |
| PN 13 AOL 16 | 12 | 8 | 1/2" | 250.0 | M 26 x 1,5 | 18 | 59.0 | 32 | 15.0 x 2.0 |
| PN 16 AOL 13 | 16 | 10 | 5/8" | 250.0 | M 22 x 1.5 | 15 | 58.0 | 27 | 12.0 x 2.0 |
| PN 16 AOL | 16 | 10 | 5/8" | 250.0 | M 26 x 1,5 | 18 | 64.0 | 32 | 15.0 x 2.0 |
| PN 16 AOL 20 | 16 | 10 | 5/8" | 215.0 | M 30 x 2 | 22 | 64.5 | 36 | 20.0 x 2.0 |
| PN 20 AOL 16 | 19 | 12 | 3/4" | 215.0 | M 26 x 1,5 | 18 | 66.5 | 32 | 15.0 x 2.0 |
| PN 20 AOL | 19 | 12 | 3/4" | 215.0 | M 30 x 2 | 22 | 71.0 | 36 | 20.0 x 2.0 |
| PN 20 AOL 25 | 19 | 12 | 3/4" | 165.0 | M 36 x 2 | 28 | 73.0 | 41 | 26.0 x 2.0 |
| PN 25 AOL 20 | 25 | 16 | 1" | 165.0 | M 30 x 2 | 22 | 75.5 | 36 | 20.0 x 2.0 |
| PN 25 AOL | 25 | 16 | 1" | 165.0 | M 36 x 2 | 28 | 81.0 | 41 | 26.0 x 2.0 |
| PN 25 AOL 32 | 25 | 16 | 1" | 160.0 | M 45 x 2 | 35 | 85.5 | 50 | 32.0 x 2.5 |
| PN 32 AOL 25 | 31 | 20 | 1.1/4" | 160.0 | M 36 x 2 | 28 | 87.0 | 41 | 26.0 x 2.0 |
| PN 32 AOL | 31 | 20 | 1.1/4" | 160.0 | M 45 x 2 | 35 | 94.5 | 50 | 32.0 x 2.5 |
| PN 32 AOL 40 | 31 | 20 | 1.1/4" | 160.0 | M 52 x 2 | 42 | 94.5 | 60 | 38.0 x 2.5 |
| PN 40 AOL 32 | 38 | 24 | 1.1/2" | 160.0 | M 45 x 2 | 35 | 94.0 | 50 | 32.0 x 2.5 |
| PN 40 AOL | 38 | 24 | 1.1/2" | 160.0 | M 52 x 2 | 42 | 98.0 | 60 | 38.0 x 2.5 |
| PN 50 AOL 40 | 51 | 32 | 2" | 160.0 | M 52 x 2 | 42 | 112.5 | 60 | 38.0 x 2.5 |
