Тип
131.11
Исполнение

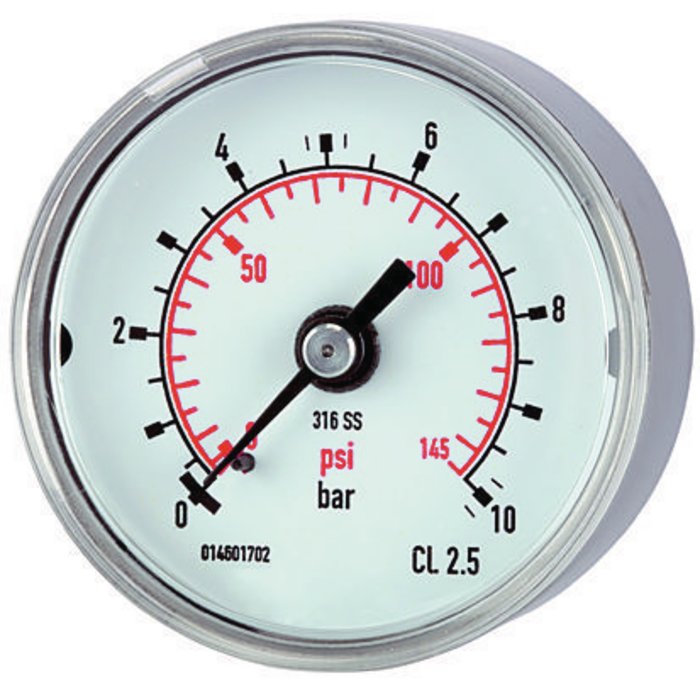

Bourdon-tube pressure gauge, CrNi steel type
Применение
For gaseous, liquid, corrosive and not crystallising
media which do not have high viscosity, also in corrosive
atmosphere
Clean Dry Air applications, machine and plant construction
Класс качества
2,5
Температура окружающей среды
-40 °C to +60 °C
Температура среды
max. +100 °C
Корпус
CrNi steel
Смотровое стекло
Polycarbonate
Standard model manufactured entirely from CrNi steel, economical and reliable.
| Наименование | Ø mm |
Диапазон измерений | Соединение |
|---|---|---|---|
| K- 07 20 03 93 | 40.0 | 0 - 1.0 bar | G 1/4" |
| K- 07 20 03 94 | 40.0 | 0 - 1.6 bar | G 1/4" |
| K- 07 20 03 95 | 40.0 | 0 - 2.5 bar | G 1/4" |
| K- 07 20 03 96 | 40.0 | 0 - 4.0 bar | G 1/4" |
| K- 07 20 03 97 | 40.0 | 0 - 6.0 bar | G 1/4" |
| K- 07 20 03 98 | 40.0 | 0 - 10.0 bar | G 1/4" |
| K- 07 20 03 99 | 40.0 | 0 - 16.0 bar | G 1/4" |
| K- 07 20 04 00 | 40.0 | 0 - 25.0 bar | G 1/4" |
| K- 07 20 04 01 | 40.0 | 0 - 40.0 bar | G 1/4" |
| K- 07 20 04 02 | 40.0 | 0 - 60.0 bar | G 1/4" |
| K- 07 20 04 03 | 40.0 | 0 - 100.0 bar | G 1/4" |
| K- 07 20 04 94 | 50.0 | 0 - 1.0 bar | G 1/4" |
| K- 07 20 04 95 | 50.0 | 0 - 1.6 bar | G 1/4" |
| K- 07 20 04 96 | 50.0 | 0 - 2.5 bar | G 1/4" |
| K- 07 20 04 97 | 50.0 | 0 - 4.0 bar | G 1/4" |
| K- 07 20 04 98 | 50.0 | 0 - 6.0 bar | G 1/4" |
| K- 07 20 04 99 | 50.0 | 0 - 10.0 bar | G 1/4" |
| K- 07 20 05 00 | 50.0 | 0 - 16.0 bar | G 1/4" |
| K- 07 20 05 01 | 50.0 | 0 - 25.0 bar | G 1/4" |
| K- 07 20 05 02 | 50.0 | 0 - 40.0 bar | G 1/4" |
| K- 07 20 05 03 | 50.0 | 0 - 60.0 bar | G 1/4" |
| K- 07 20 05 04 | 50.0 | 0 - 100.0 bar | G 1/4" |
