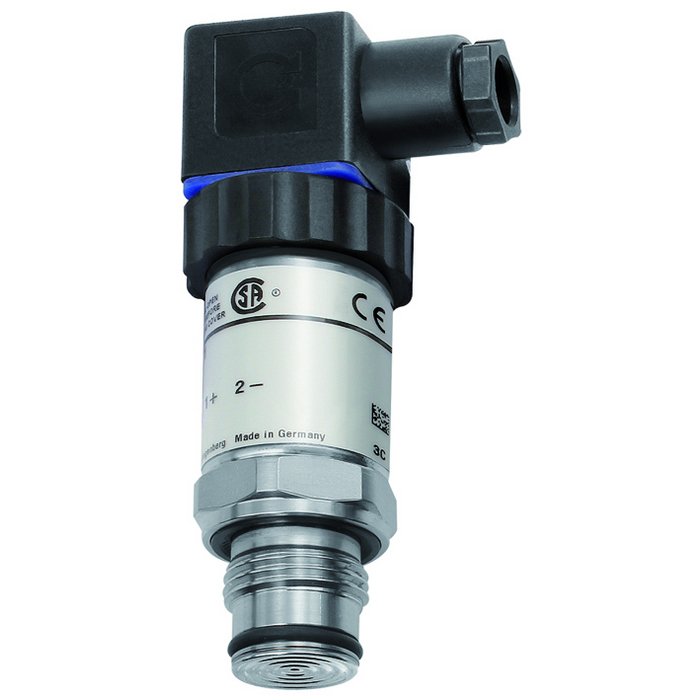

Pressure transmitter for viscous and solids-containing media, nonlinearity 0.2% - K-DMUF FESTSTOFFHALTIGE MED

Свойства

Тип

S-11

Напряжение

DC 10 (14) ... 30 V

Подключение к электросети

With right-angle connector acc. to DIN EN 175301-803 A

Степень защиты

IP 65 acc. to EN 60529

Выходной сигнал

4 to 20 mA, 2-wire

Нелинейность

0.2% of span

Температура окружающей среды

-20 °C to +80 °C

Температура среды

-30 °C to +100 °C; (Range: 400 and 600 bar: -30 °C to +70 °C)

Детали, контактирующие с измеряемой средой

CrNi steel 1.4571

Корпус

CrNi steel 1.4571

Описание

Pressure transmitter in CrNi steel with flush diaphragm for measuring viscous, pasty, adhesive, crystallising, particle-laden or contaminated media, which would clog the pressure channel of conventional process connections. Applications: Electronic pressure measurement in the food and beverages sector, hydraulic power units or industrial applications in general.
