_____
SAE J 518 C
ISO 6162
Конструкция
Угол 90°
Модель

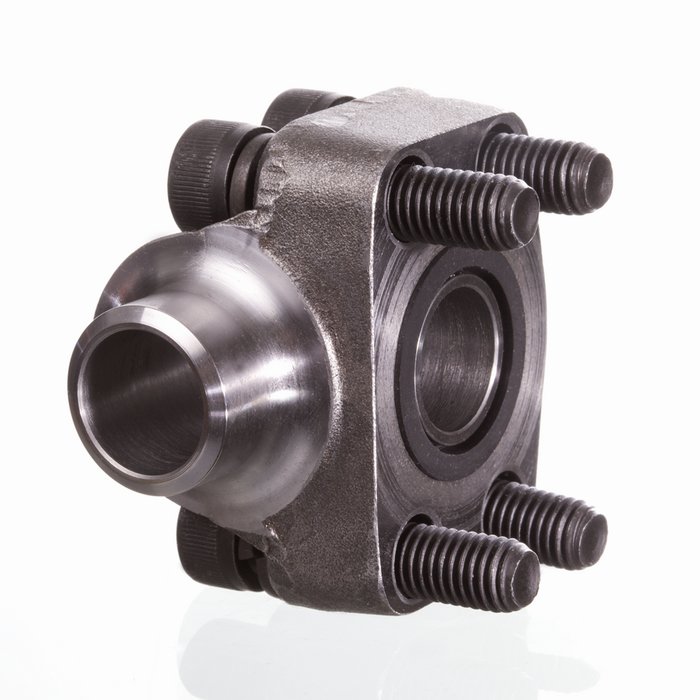

Приварной фланец SAE
Крепление
Отверстие под винт
Комплект поставки
С комплектом винтов UNC и кольцом круглого сечения
Материал
S355J2G3 (ST52.3)
Защита поверхности
Смазка черным маслом
| Наименование | _____ | Серия давления | PB 10.9 bar |

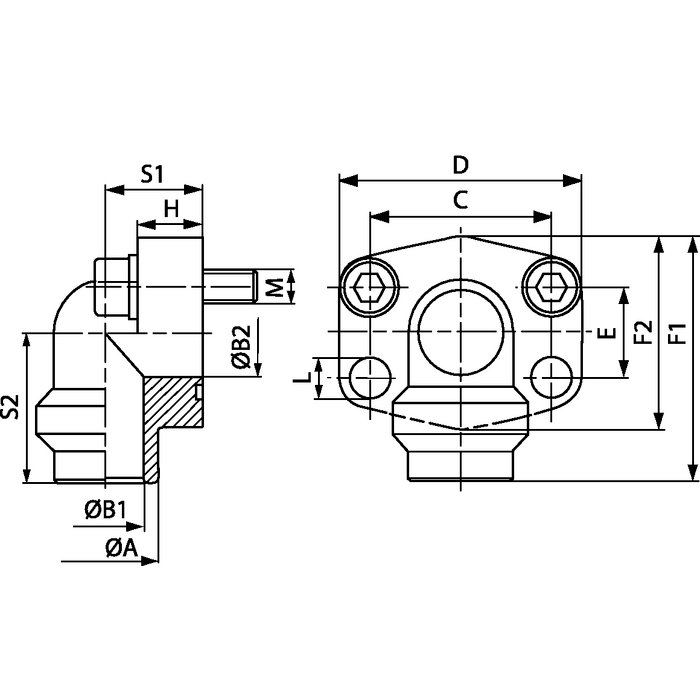

Типоразмер | Труба | A mm |
B1 mm |
B2 mm |
C mm |
D mm |
E mm |
F1 mm |
F2 mm |
H mm |
S1 mm |
S2 mm |
L mm |
Винты |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AFS 80/90 SRE 20 U | SAE J 518 CISO 6162 | 6000 PSI | 250 | 1/2" | 20 x 3 | 20 | 14 | 13 | 38.1 | 54.0 | 17.5 | 60 | 48 | 16 | 20 | 37 | 9.0 | (4 шт.) UNC 5/16 x 1.1/4 |
| AFS 80/90 SRE 22 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1/2" | 22 x 2 | 22 | 18 | 13 | 38.1 | 54.0 | 17.5 | 60 | 48 | 16 | 20 | 37 | 9.0 | (4 шт.) UNC 5/16 x 1.1/4 |
| AFS 80/90 SRE 25 U | SAE J 518 CISO 6162 | 6000 PSI | 250 | 1/2" | 25 x 3 | 25 | 19 | 13 | 38.1 | 54.0 | 17.5 | 60 | 48 | 16 | 20 | 37 | 9.0 | (4 шт.) UNC 5/16 x 1.1/4 |
| AFS 80/90 SRE 28 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1/2" | 28 x 3 | 28 | 22 | 13 | 38.1 | 54.0 | 17.5 | 60 | 48 | 16 | 20 | 37 | 9.0 | (4 шт.) UNC 5/16 x 1.1/4 |
| AFS 100/90 SRE 25 U | SAE J 518 CISO 6162 | 6000 PSI | 250 | 3/4" | 25 x 3 | 25 | 19 | 19 | 47.6 | 65.0 | 22.3 | 63 | 50 | 18 | 24 | 38 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 100/90 SRE 28 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 3/4" | 28 x 3 | 28 | 22 | 19 | 47.6 | 65.0 | 22.3 | 63 | 50 | 18 | 24 | 38 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 100/90 SRE 30 U | SAE J 518 CISO 6162 | 6000 PSI | 250 | 3/4" | 30 x 4 | 30 | 22 | 19 | 47.6 | 65.0 | 22.3 | 63 | 50 | 18 | 24 | 38 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 100/90 SRE 35 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 3/4" | 35 x 4 | 35 | 27 | 19 | 47.6 | 65.0 | 22.3 | 63 | 50 | 18 | 24 | 38 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 102/90 SRE 30 U | SAE J 518 CISO 6162 | 6000 PSI | 250 | 1" | 30 x 4 | 30 | 22 | 25 | 52.4 | 70.0 | 26.2 | 70 | 60 | 19 | 28 | 43 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 102/90 SRE 35 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1" | 35 x 4 | 35 | 27 | 25 | 52.4 | 70.0 | 26.2 | 70 | 60 | 19 | 28 | 43 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 102/90 SRE 38 U | SAE J 518 CISO 6162 | 6000 PSI | 250 | 1" | 38 x 4 | 38 | 30 | 25 | 52.4 | 70.0 | 26.2 | 70 | 60 | 19 | 28 | 43 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 102/90 SRE 42 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1" | 42 x 3 | 42 | 36 | 25 | 52.4 | 70.0 | 26.2 | 70 | 60 | 19 | 28 | 43 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 104/90 SRE 38 U | SAE J 518 CISO 6162 | 6000 PSI | 250 | 1.1/4" | 38 x 4 | 38 | 30 | 32 | 58.7 | 79.0 | 30.2 | 85 | 68 | 21 | 34 | 51 | 11.5 | (4 шт.) UNC 7/16 x 1.1/2 |
| AFS 104/90 SRE 42 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1.1/4" | 42 x 3 | 42 | 36 | 32 | 58.7 | 79.0 | 30.2 | 85 | 68 | 21 | 34 | 51 | 11.5 | (4 шт.) UNC 7/16 x 1.1/2 |
| AFS 104/90 SRE 48 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1.1/4" | 48.3 x 4.5 | 49 | 39 | 32 | 58.7 | 79.0 | 30.2 | 85 | 68 | 21 | 34 | 51 | 11.5 | (4 шт.) UNC 7/16 x 1.1/2 |
| AFS 106/90 SRE 38 U | SAE J 518 CISO 6162 | 6000 PSI | 210 | 1.1/2" | 38 x 4 | 38 | 30 | 38 | 69.9 | 93.0 | 35.7 | 95 | 78 | 25 | 38 | 56 | 13.5 | (4 шт.) UNC 1/2 x 1.3/4 |
| AFS 106/90 SRE 42 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1.1/2" | 42 x 3 | 42 | 36 | 38 | 69.9 | 93.0 | 35.7 | 95 | 78 | 25 | 38 | 56 | 13.5 | (4 шт.) UNC 1/2 x 1.3/4 |
| AFS 106/90 SRE 48 U | SAE J 518 CISO 6162 | 6000 PSI | 160 | 1.1/2" | 48.3 x 4.5 | 49 | 39 | 38 | 69.9 | 93.0 | 35.7 | 95 | 78 | 25 | 38 | 56 | 13.5 | (4 шт.) UNC 1/2 x 1.3/4 |
| AFS 108/90 SRE 60 U | SAE J 518 CISO 6162 | 6000 PSI | 200 | 2" | 60.3 x 5.6 | 61 | 49 | 51 | 77.8 | 110.0 | 42.9 | 110 | 90 | 25 | 42 | 65 | 13.5 | (4 шт.) UNC 1/2 x 1.3/4 |
| AFS 108/90 SRE 76 U | SAE J 518 CISO 6162 | 6000 PSI | 200 | 2" | 76.1 x 7.1 | 77 | 62 | 51 | 77.8 | 110.0 | 42.9 | 110 | 90 | 25 | 42 | 65 | 13.5 | (4 шт.) UNC 1/2 x 1.3/4 |
| AFS 401/90 SRE 20 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 1/2" | 20 x 3 | 20 | 14 | 13 | 40.5 | 56.4 | 18.2 | 60 | 48 | 16 | 20 | 37 | 9.0 | (4 шт.) UNC 5/16 x 1.1/4 |
| AFS 401/90 SRE 25 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 1/2" | 25 x 4 | 25 | 17 | 13 | 40.5 | 56.4 | 18.2 | 60 | 48 | 16 | 20 | 37 | 9.0 | (4 шт.) UNC 5/16 x 1.1/4 |
| AFS 402/90 SRE 25 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 3/4" | 25 x 4 | 25 | 17 | 19 | 50.8 | 71.3 | 23.8 | 70 | 60 | 19 | 28 | 43 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 402/90 SRE 30 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 3/4" | 30 x 4 | 30 | 22 | 19 | 50.8 | 71.3 | 23.8 | 70 | 60 | 19 | 28 | 43 | 11.0 | (4 шт.) UNC 3/8 x 1.1/2 |
| AFS 403/90 SRE 30 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 1" | 30 x 4 | 30 | 22 | 25 | 57.2 | 81.0 | 27.8 | 85 | 70 | 21 | 34 | 51 | 13.0 | (4 шт.) UNC 7/16 x 1.1/2 |
| AFS 403/90 SRE 38 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 1" | 38 x 5 | 38 | 28 | 25 | 57.2 | 81.0 | 27.8 | 85 | 70 | 21 | 34 | 51 | 13.0 | (4 шт.) UNC 7/16 x 1.1/2 |
| AFS 404/90 SRE 38 U | - | 6000 PSI | 315 | 1.1/4" | 38 x 5 | 38 | 28 | 32 | 66.6 | 95.2 | 31.8 | 95 | 78 | 25 | 38 | 56 | 13.5 | (4 шт.) UNC 1/2 x 1.3/4 |
| AFS 404/90 SRE 48 U | - | 6000 PSI | 315 | 1.1/4" | 48.3 x 8 | 49 | 32 | 32 | 66.6 | 95.2 | 31.8 | 95 | 78 | 25 | 38 | 56 | 13.5 | (4 шт.) UNC 1/2 x 1.3/4 |
| AFS 405/90 SRE 38 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 1.1/2" | 38 x 5 | 38 | 28 | 38 | 79.3 | 112.8 | 36.5 | 110 | 94 | 25 | 42 | 65 | 17.0 | (4 шт.) UNC 5/8 x 2 |
| AFS 405/90 SRE 48 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 1.1/2" | 48.3 x 8 | 49 | 32 | 38 | 79.3 | 112.8 | 36.5 | 110 | 94 | 25 | 42 | 65 | 17.0 | (4 шт.) UNC 5/8 x 2 |
| AFS 405/90 SRE 60 U | SAE J 518 CISO 6162 | 6000 PSI | 315 | 1.1/2" | 60.3 x 10 | 61 | 40 | 38 | 79.3 | 112.8 | 36.5 | 110 | 94 | 25 | 42 | 65 | 17.0 | (4 шт.) UNC 5/8 x 2 |
