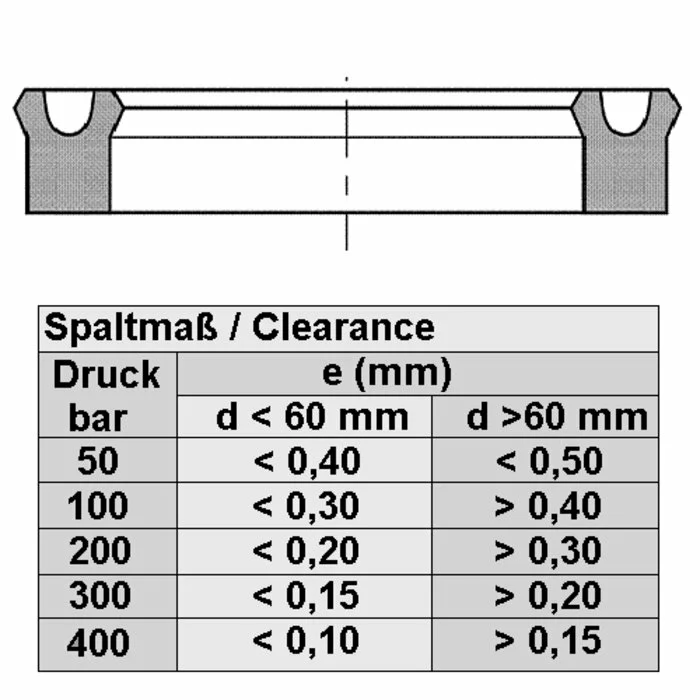

U-образное уплотнение, MU - MU

нет в наличии

код: 678850849

1,00 грн. /шт

з 3 отзывов, 100% положительных

Все товары продавца

Регион: Украина, Киевская обл., Киев

+380 показать

Написать продавцу

Описание товара

Свойства

Модель

U-образное уплотнение

Рабочее давление

до 400 бар

Скорость скольжения макс.

0.5 m/s

Температура min.

-30 °C

Температура макс.

80 °C

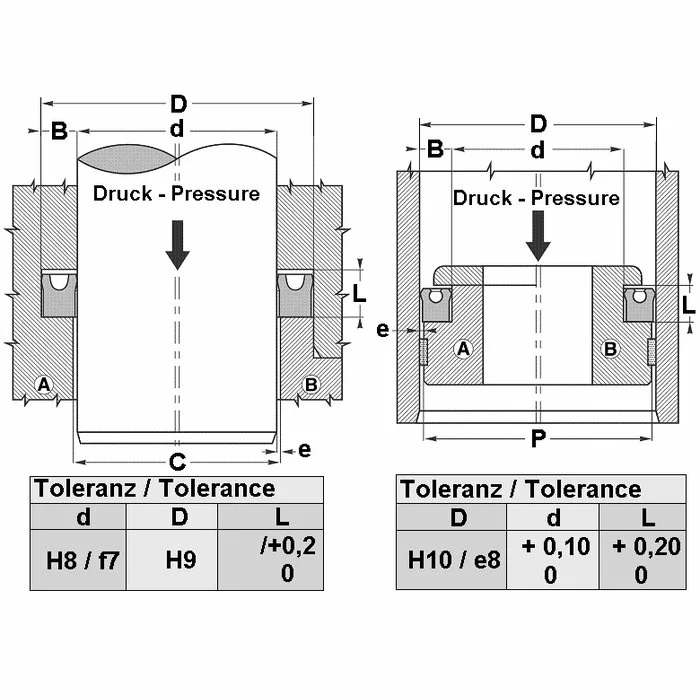

Монтаж

в закрытых пазах А
в открытых пазах В
на моноблочных В или многоблочных А поршнях

Рабочие среды

Минеральное масло

Материал

Polyurethane (PUR)

Применение

Гидравлика

Описание

для стержней и поршней
высокая стойкость к истиранию
для новых конструкций TS, TS-L, RS-L и EU Profile
использовать (уплотнения штока).

Изделие

Наименование	d nom. mm	D mm	L mm	Скорость скольжения макс. m/s
MU 09 03	3.00	9.0	5.0	-
MU 10 04	4.00	10.0	4.5	-
MU 10 04-1	4.00	10.0	5.0	-
MU 11 04	4.50	11.0	5.5	-
MU 12 04	4.00	12.0	4.5	-
MU 12 05-1	5.00	12.0	5.5	-
MU 12 05-2	5.00	12.0	6.5	-
MU 12 05	5.00	12.0	7.0	-
MU 12 06	6.00	12.0	4.5	-
MU 12 06-4	6.00	12.0	6.0	-
MU 12 06-5	6.00	12.0	6.5	-
MU 12 06-2	6.00	12.0	9.0	-
MU 12 08	8.00	12.0	3.5	-
MU 13 06	6.00	12.7	6.5	-
MU 13 05	5.00	13.0	4.5	-
MU 14 07	7.00	14.0	4.2	-
MU 14 08	8.00	14.0	7.0	-
MU 15 06	6.00	15.0	9.0	-
MU 15 07-1	7.00	15.0	8.0	-
MU 15 08	8.00	15.0	6.3	-
MU 15 08-2	8.00	15.0	9.0	-
MU 15 09	9.00	15.0	9.0	-
MU 16 06	6.00	16.0	5.5	-
MU 16 08	8.00	16.0	4.5	-
MU 16 08-2	8.00	16.0	6.3	-
MU 16 10	10.00	16.0	6.5	-
MU 18 08	8.00	18.0	5.5	-
MU 18 08-1	8.00	18.0	8.0	-
MU 18 08-2	8.00	18.0	11.0	-
MU 18 10-3	10.00	18.0	4.5	-
MU 18 10-1	10.00	18.0	6.0	-
MU 18 10	10.00	18.0	7.0	-
MU 18 10-4	10.00	18.0	9.0	-
MU 18 12	12.00	18.0	5.5	-
MU 18 12-1	12.00	18.0	7.0	-
MU 19 09-1	9.00	19.0	7.0	-
MU 20 10	10.00	20.0	5.5	-
MU 20 10-1	10.00	20.0	9.0	-
MU 20 12-1	12.00	20.0	4.5	-
MU 20 12-2	12.00	20.0	8.0	-
MU 20 12	12.00	20.0	9.0	-
MU 20 14	14.00	20.0	5.3	-
MU 21 11	11.00	20.5	7.0	-
MU 22 08	8.00	22.0	9.0	-
MU 22 10	10.00	22.0	7.0	-
MU 22 10-1	10.00	22.0	9.0	-
MU 22 12	12.00	22.0	5.5	-
MU 22 12-4	12.00	22.0	8.0	-
MU 22 12-1	12.00	22.0	9.0	-
MU 22 14-1	14.00	22.0	7.0	-
MU 22 14-2	14.00	22.0	9.0	-
MU 22 16	16.00	22.0	4.5	-
MU 22 16-2	16.00	22.0	5.5	-
MU 24 12-1	12.00	24.0	9.0	-
MU 24 14	14.00	24.0	9.0	-
MU 24 16-1	16.00	24.0	4.5	-
MU 24 16-2	16.00	24.0	6.0	-
MU 24 16-3	16.00	24.0	9.0	-
MU 24 16	16.00	24.0	10.0	-
MU 25 10	10.00	25.0	8.0	-
MU 25 12-1	12.00	25.0	9.0	-
MU 25 15-1	15.00	25.0	5.5	-
MU 25 15-2	15.00	25.0	9.0	-
MU 25 15	15.00	25.0	11.0	-
MU 25 16-1	16.00	25.0	9.0	-
MU 25 17-2	17.00	25.0	11.0	-
MU 25 18	18.00	25.0	5.5	-
MU 25 19-1	19.00	25.0	3.5	-
MU 25 19	19.00	25.0	7.0	-
MU 25 16	15.90	25.4	7.0	-
MU 26 16	16.00	26.0	6.0	-
MU 26 16-1	16.00	26.0	9.0	-
MU 26 16-2	16.00	26.0	11.0	-
MU 26 18-1	18.00	26.0	4.5	-
MU 26 18	18.00	26.0	7.5	-
MU 26 18-4	18.00	26.0	9.0	-
MU 27 15	15.00	27.0	7.0	-
MU 28 15	15.00	28.0	11.0	-
MU 28 16	16.00	28.0	7.0	-
MU 28 18	18.00	28.0	5.5	-
MU 28 18-1	18.00	28.0	9.0	-
MU 28 20	20.00	28.0	5.0	-
MU 28 20-1	20.00	28.0	5.5	-
MU 28 20-3	20.00	28.0	9.0	-
MU 28 22	22.00	28.0	9.0	-
MU 30 18-1	18.00	30.0	9.0	-
MU 30 20-1	20.00	30.0	5.5	-
MU 30 20-3	20.00	30.0	8.0	-
MU 30 20-2	20.00	30.0	9.0	-
MU 30 20	20.00	30.0	11.0	-
MU 30 22-1	22.00	30.0	4.5	-
MU 30 22-2	22.00	30.0	7.0	-
MU 30 22	22.00	30.0	7.5	-
MU 30 22-3	22.00	30.0	11.0	-
MU 30 23	23.00	30.0	7.5	0.5
MU 32 16	16.00	32.0	9.0	-
MU 32 20-2	20.00	32.0	8.5	-
MU 32 20-1	20.00	32.0	10.0	-
MU 32 22-1	22.00	32.0	5.5	-
MU 32 22	22.00	32.0	9.0	-
MU 32 22-2	22.00	32.0	11.0	-
MU 32 24-3	24.00	32.0	6.5	-
MU 32 24-1	24.00	32.0	7.5	-
MU 32 24-4	24.00	32.0	8.0	-
MU 33 25-1	25.00	33.0	4.5	-
MU 33 25-2	25.00	33.0	5.5	-
MU 33 25	25.00	33.0	7.5	-
MU 34 22	22.00	34.0	6.5	-
MU 34 26	26.00	34.0	4.5	0.5
MU 35 20	20.00	35.0	13.0	-
MU 35 22-1	22.00	35.0	6.0	-
MU 35 22	22.00	35.0	11.0	-
MU 35 25-1	25.00	35.0	5.5	-
MU 35 25-2	25.00	35.0	9.0	-
MU 35 25	25.00	35.0	11.0	-
MU 35 27	27.00	35.0	6.5	-
MU 35 28	28.00	35.0	5.5	-
MU 36 22	22.00	36.0	11.0	-
MU 36 24	24.00	36.0	6.5	-
MU 36 26-1	26.00	36.0	8.0	-
MU 36 28	28.00	36.0	7.5	-
MU 37 30	30.00	37.0	7.0	-
MU 38 25	25.00	38.0	9.0	-
MU 38 25-2	25.00	38.0	11.0	-
MU 38 28-1	28.00	38.0	9.0	-
MU 38 30	30.00	38.0	8.0	-
MU 38 30-2	30.00	38.0	6.5	-
MU 38 25-1	25.00	38.1	7.0	-
MU 39 20	20.00	39.0	11.0	-
MU 40 20-1	20.00	40.0	11.0	-
MU 40 20	20.00	40.0	12.0	-
MU 40 20-2	20.00	40.0	13.0	-
MU 40 22	22.00	40.0	11.0	-
MU 40 24	24.00	40.0	9.0	-
MU 40 25	25.00	40.0	8.0	-
MU 40 25-1	25.00	40.0	11.0	-
MU 40 28	28.00	40.0	6.5	-
MU 40 28-1	28.00	40.0	11.0	-
MU 40 30-1	30.00	40.0	5.5	-
MU 40 30	30.00	40.0	11.0	-
MU 40 32-1	32.00	40.0	4.5	-
MU 40 32	32.00	40.0	6.0	-
MU 40 32-3	32.00	40.0	9.0	-
MU 42 30-1	30.00	42.0	6.5	-
MU 42 30	30.00	42.0	10.0	-
MU 42 30-2	30.00	42.0	11.0	-
MU 42 32-1	32.00	42.0	5.5	-
MU 42 32-2	32.00	42.0	8.0	-
MU 42 32	32.00	42.0	11.0	-
MU 42 34	34.00	42.0	6.5	-
MU 45 25	25.00	45.0	11.0	-
MU 45 30	30.00	45.0	10.0	-
MU 45 30-1	30.00	45.0	11.0	-
MU 45 32	32.00	45.0	11.0	-
MU 45 34-1	34.00	45.0	8.0	-
MU 45 34	34.00	45.0	10.0	-
MU 45 35	35.00	45.0	5.5	-
MU 45 35-2	35.00	45.0	9.0	-
MU 45 35-3	35.00	45.0	11.0	-
MU 45 35-4	35.00	45.0	7.0	-
MU 45 38	38.00	45.0	5.5	-
MU 46 36	36.00	46.0	8.0	-
MU 46 38	38.00	46.0	7.5	-
MU 48 35	35.00	48.0	11.0	-
MU 48 36	36.00	48.0	9.0	-
MU 48 40-1	40.00	48.0	12.0	-
MU 50 30	30.00	50.0	11.0	-
MU 50 30-1	30.00	50.0	13.0	-
MU 50 32-1	32.00	50.0	13.0	-
MU 50 34-1	34.00	50.0	15.0	-
MU 50 35	35.00	50.0	8.0	-
MU 50 35-1	35.00	50.0	11.0	-
MU 50 38	38.00	50.0	6.5	-
MU 50 38-1	38.00	50.0	10.0	-
MU 50 40-2	40.00	50.0	5.5	-
MU 50 40	40.00	50.0	7.5	-
MU 50 40-3	40.00	50.0	9.0	-
MU 50 40-1	40.00	50.0	11.0	-
MU 50 44	44.00	50.0	9.5	-
MU 51 41	40.80	50.8	7.7	-
MU 52 32	32.00	52.0	11.0	-
MU 52 40	40.00	52.0	9.0	-
MU 52 40-2	40.00	52.0	11.0	-
MU 52 42-1	42.00	52.0	10.0	-
MU 53 45	45.00	53.0	7.5	-
MU 54 42	42.00	54.0	6.5	-
MU 55 35	35.00	55.0	11.0	-
MU 55 35-1	35.00	55.0	13.0	-
MU 55 38	38.00	55.0	11.0	-
MU 55 40	40.00	55.0	11.0	-
MU 55 45	45.00	55.0	7.5	-
MU 55 45-3	45.00	55.0	9.0	-
MU 55 45-1	45.00	55.0	11.0	-
MU 56 40	40.00	56.0	11.0	-
MU 58 38	38.00	58.0	11.0	-
MU 58 48	48.00	58.0	11.0	-
MU 60 35	35.00	60.0	13.0	-
MU 60 40-1	40.00	60.0	11.0	-
MU 60 40-2	40.00	60.0	14.0	-
MU 60 40-3	40.00	60.0	19.0	-
MU 60 45	45.00	60.0	11.0	-
MU 60 48	48.00	60.0	6.5	-
MU 60 50-2	50.00	60.0	5.5	-
MU 60 50	50.00	60.0	11.0	-
MU 60 50-1	50.00	60.0	12.0	-
MU 62 42	42.00	62.0	13.0	-
MU 62 50	50.00	62.0	10.0	-
MU 62 52	52.00	62.0	13.0	-
MU 63 45	45.00	63.0	11.0	-
MU 63 48	48.00	63.0	11.0	-
MU 63 50	50.00	63.0	7.0	-
MU 63 53-1	53.00	63.0	5.5	-
MU 63 53	53.00	63.0	7.5	-
MU 63 53-2	53.00	63.0	8.0	-
MU 65 40	40.00	65.0	13.0	-
MU 65 45	45.00	65.0	11.0	-
MU 65 45-1	45.00	65.0	13.0	-
MU 65 50-1	50.00	65.0	11.0	-
MU 65 55-1	55.00	65.0	11.0	-
MU 65 55	55.00	65.0	13.0	-
MU 70 36	26.00	70.0	11.0	-
MU 70 40	40.00	70.0	16.0	-
MU 70 50-1	50.00	70.0	11.0	-
MU 70 50	50.00	70.0	13.0	-
MU 70 50-2	50.00	70.0	16.0	-
MU 70 55-1	55.00	70.0	8.0	-
MU 70 55	55.00	70.0	11.0	-
MU 70 55-3	55.00	70.0	12.0	-
MU 70 55-2	55.00	70.0	13.0	-
MU 70 60-2	60.00	70.0	5.5	-
MU 70 60	60.00	70.0	9.0	-
MU 70 60-3	60.00	70.0	11.0	-
MU 70 60-1	60.00	70.0	13.0	-
MU 72 50	50.00	72.0	13.0	-
MU 75 50	50.00	75.0	13.0	-
MU 75 55	55.00	75.0	11.0	-
MU 75 55-1	55.00	75.0	13.0	-
MU 75 60-1	60.00	75.0	8.0	-
MU 75 60-2	60.00	75.0	11.0	-
MU 75 60	60.00	75.0	13.0	-
MU 75 63	63.00	75.0	11.0	-
MU 75 65	85.00	75.0	13.0	-
MU 76 56	56.00	76.0	13.0	-
MU 76 66	66.00	76.0	9.0	-
MU 78 63	63.00	78.0	11.0	-
MU 80 50	50.00	80.0	11.0	-
MU 80 55-3	55.00	80.0	11.0	0.5
MU 80 55	55.00	80.0	13.0	-
MU 80 55-1	55.00	80.0	20.0	0.5
MU 80 60	60.00	80.0	11.0	-
MU 80 60-1	60.00	80.0	13.0	-
MU 80 60-2	60.00	80.0	16.0	-
MU 80 60-3	60.00	80.0	19.0	-
MU 80 65-1	65.00	80.0	8.0	-
MU 80 65-3	65.00	80.0	11.0	-
MU 80 65-2	65.00	80.0	12.0	-
MU 80 65	65.00	80.0	13.0	-
MU 80 66	66.00	80.0	11.0	-
MU 80 70-2	70.00	80.0	5.5	-
MU 80 70	70.00	80.0	9.0	-
MU 80 70-3	70.00	80.0	11.0	-
MU 80 70-1	70.00	80.0	13.0	-
MU 83 63	63.00	83.0	16.0	-
MU 85 55	55.00	85.0	16.0	-
MU 85 60-2	60.00	85.0	11.0	-
MU 85 65-1	65.00	85.0	11.0	-
MU 85 65	65.00	85.0	13.0	-
MU 85 70	70.00	85.0	11.0	-
MU 85 70-1	70.00	85.0	12.0	-
MU 85 70-2	70.00	85.0	13.0	-
MU 85 75	75.00	85.0	13.0	-
MU 90 60	60.00	90.0	16.0	-
MU 90 70-1	70.00	90.0	11.0	-
MU 90 70	70.00	90.0	13.0	-
MU 90 70-2	70.00	90.0	16.0	-
MU 90 70-3	70.00	90.0	19.0	-
MU 90 75-1	75.00	90.0	8.5	-
MU 90 75	75.00	90.0	11.0	-
MU 90 75-2	75.00	90.0	13.0	-
MU 90 80	80.00	90.0	5.5	-
MU 90 80-2	80.00	90.0	11.0	-
MU 90 80-3	80.00	90.0	13.0	-
MU 93 78	78.00	93.0	11.5	-
MU 95 70-2	70.00	95.0	11.0	-
MU 95 70	70.00	95.0	13.0	-
MU 95 75-3	75.00	95.0	11.0	-
MU 95 75-1	75.00	95.0	13.0	-
MU 95 75	75.00	95.0	14.5	-
MU 95 80	80.00	95.0	8.0	-
MU 95 80-2	80.00	95.0	11.0	-
MU 95 80-1	80.00	95.0	13.0	-
MU 95 85-1	85.00	95.0	5.5	-
MU 95 85	85.00	95.0	9.5	-
MU 95 85-3	85.00	95.0	13.0	-
MU 96 76	76.50	96.5	13.0	-
MU 100 70	70.00	100.0	16.0	-
MU 100 75	75.00	100.0	13.0	-
MU 100 75-1	75.00	100.0	20.0	-
MU 100 80-1	80.00	100.0	11.0	-
MU 100 80	80.00	100.0	13.0	-
MU 100 85-3	85.00	100.0	10.0	-
MU 100 85-2	85.00	100.0	12.0	-
MU 100 85	85.00	100.0	13.0	-
MU 100 90-2	90.00	100.0	5.5	-
MU 100 90-4	90.00	100.0	8.0	-
MU 100 90	90.00	100.0	9.0	-
MU 100 90-3	90.00	100.0	13.0	-
MU 105 80-3	80.00	105.0	23.0	-
MU 105 85-1	85.00	105.0	13.0	-
MU 105 85-2	85.00	105.0	19.0	-
MU 105 90-1	90.00	105.0	8.0	-
MU 105 90	90.00	105.0	13.0	-
MU 110 80	80.00	110.0	16.0	-
MU 110 85	85.00	110.0	13.0	-
MU 110 90-1	90.00	110.0	11.0	-
MU 110 90	90.00	110.0	13.0	-
MU 110 90-3	90.00	110.0	19.0	-
MU 110 95-1	95.00	110.0	13.0	-
MU 110 95-2	95.00	110.0	16.0	-
MU 110 100	100.00	110.0	5.5	-
MU 112 095-1	95.00	112.0	12.0	-
MU 115 085	85.00	115.0	16.0	-
MU 115 090-2	90.00	115.0	16.0	-
MU 115 095	95.00	115.0	13.0	-
MU 115 095-3	95.00	115.0	19.0	-
MU 115 100	100.00	115.0	13.0	-
MU 120 090	90.00	120.0	16.0	-
MU 120 100-1	100.00	120.0	11.0	-
MU 120 100	100.00	120.0	13.0	-
MU 120 100-3	100.00	120.0	19.0	-
MU 120 105-3	105.00	120.0	9.0	-
MU 120 105-1	105.00	120.0	12.0	-
MU 120 105-2	105.00	120.0	16.0	-
MU 125 100	100.00	125.0	13.0	-
MU 125 100-1	100.00	125.0	16.0	-
MU 125 105	105.00	125.0	13.0	-
MU 125 105-2	105.00	125.0	16.0	-
MU 125 110-1	110.00	125.0	13.0	-
MU 125 110-2	110.00	125.0	16.0	-
MU 126 115	115.00	126.0	16.0	-
MU 130 100	100.00	130.0	13.0	-
MU 130 110-2	110.00	130.0	11.0	-
MU 130 110-1	110.00	130.0	13.0	-
MU 130 110	110.00	130.0	16.0	-
MU 130 110-3	110.00	130.0	19.0	-
MU 130 120	120.00	130.0	15.0	-
MU 135 115	115.00	135.0	16.0	-
MU 135 120	120.00	135.0	16.0	-
MU 140 115-1	115.00	140.0	16.0	-
MU 140 120-1	120.00	140.0	11.0	-
MU 140 120	120.00	140.0	13.0	-
MU 140 120-2	120.00	140.0	16.0	-
MU 140 125	125.00	140.0	12.0	-
MU 140 125-2	125.00	140.0	16.0	-
MU 145 125	125.00	145.0	16.0	-
MU 145 125-1	125.00	145.0	19.0	-
MU 150 130-1	130.10	150.0	16.0	-
MU 150 135-1	135.00	150.0	16.0	-
MU 155 125	125.00	155.0	16.0	-
MU 155 135	135.00	155.0	16.0	-
MU 160 135-1	135.00	160.0	16.0	-
MU 160 140	140.00	160.0	11.0	-
MU 160 140-2	140.00	160.0	13.0	-
MU 160 140-1	140.00	160.0	16.0	-
MU 165 145	145.00	165.0	16.0	-
MU 170 150-2	150.00	170.0	16.0	-
MU 175 160	160.00	175.0	12.0	-
MU 180 160	160.00	180.0	16.0	-
MU 190 170	170.00	190.0	16.0	-
MU 200 170-1	170.00	200.0	19.0	-
MU 200 175-1	175.00	200.0	16.0	-
MU 200 180	180.00	200.0	16.0	-
MU 220 180-1	180.00	220.0	21.0	0.5
MU 220 190	190.00	220.0	23.0	-
MU 225 200-2	200.00	225.0	19.0	-
MU 240 210	210.00	240.0	18.0	-
MU 250 220	220.00	250.0	19.0	-
MU 250 220-1	220.00	250.0	22.0	-
MU 320 305	305.00	320.0	18.0	-
MU 390 360	360.00	390.0	23.0	-
